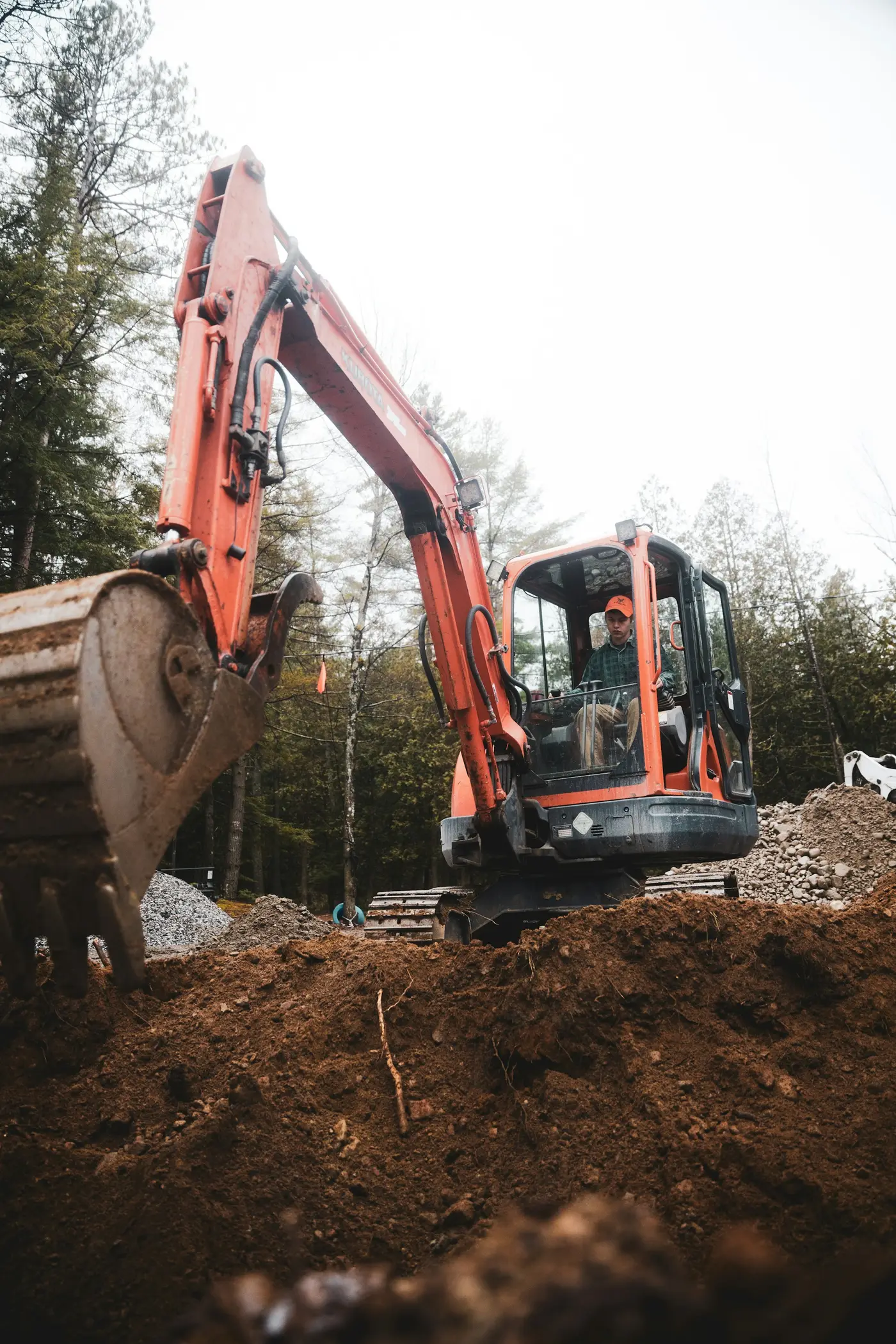

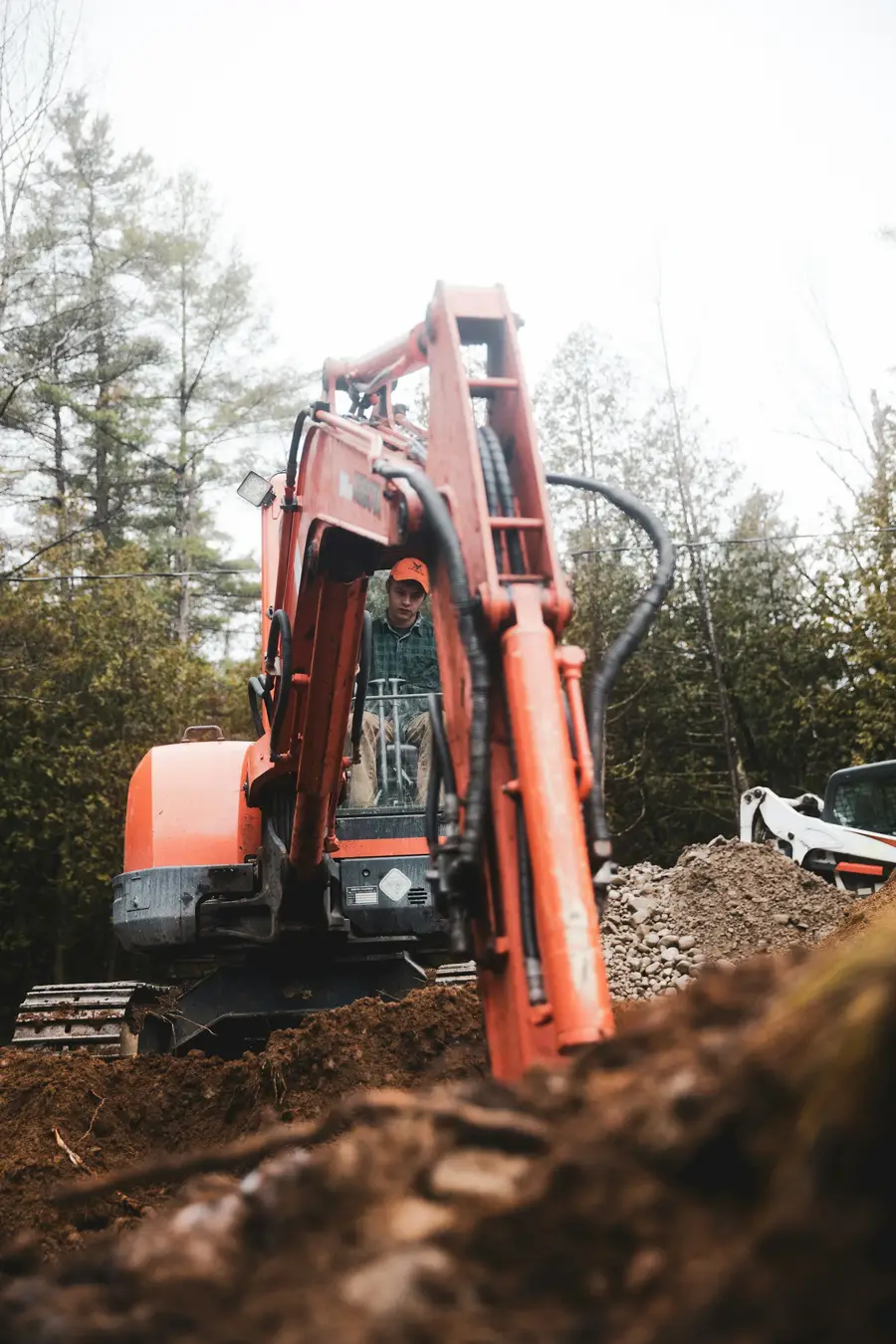

Red compact excavator digging a trench along a house, with the operator in the cab and trees behind
Exterior excavation to the footing, done with a compact machine that fits a side yard

Town of Caledon · Peel Region

Basement waterproofing in Caledon

We find where the water gets into your basement and fix that point: interior and exterior waterproofing, crack injection, sump pumps, weeping tile and backwater valves, for farmhouses, village houses and subdivisions across Caledon.

  • Free assessment at your house, inside and out
  • Scope and price in writing before anything is booked
  • Well and septic located before any trench is planned
  • Phone answered 24 hours a day, 7 days a week
Water coming in right now? Call any hour. A person answers, not a machine.
24/7Phone answered every hour, holidays included
1.2mFrost depth here under the Ontario Building Code; exterior repairs go below it
60%Of a backwater valve paid back by the Region of Peel, up to $1,500
6Repairs from one company, so the advice is not tied to one method

Which wall do you have?

Three kinds of foundation, three kinds of leak

The wall type decides how water gets in and which repair works. Pick yours.

Fieldstone or rubble

What you see
Damp patches that follow the mortar joints, and sand and grit on the floor along the wall.
Why it happens
Water comes through the lime-mortar joints, not one crack, so sealing one spot moves the leak to the next.
The repair
Exterior: repoint, parge, seal, new drain at the footing. Inside: a floor-edge drain with a membrane over the whole wall.
Exterior waterproofing

Concrete block

What you see

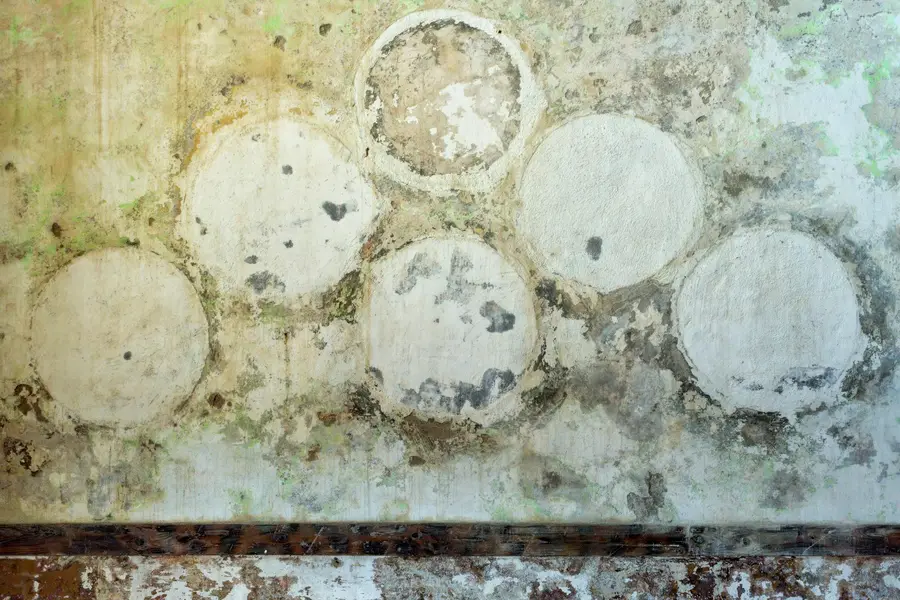

A wet line along the bottom course and white efflorescence across the wall after rain.
Why it happens
Blocks are hollow. Water entering a joint anywhere up the wall falls through the cores and comes out at the floor.
The repair
An interior drain with weep holes drilled into the bottom cores, or an exterior membrane when the whole wall is wet and reachable.
Interior drainage

Poured concrete

What you see

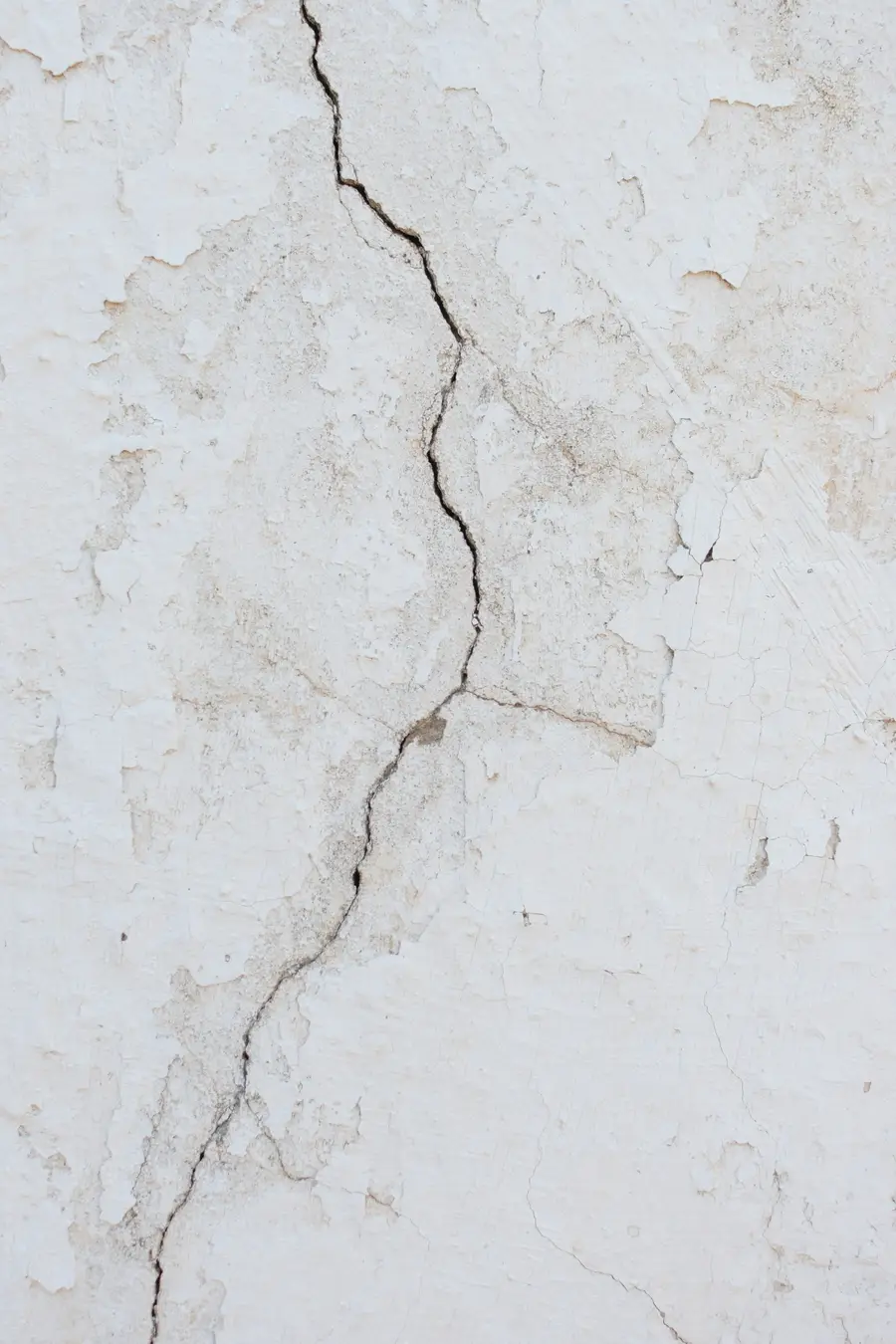

One vertical or diagonal line that darkens or drips in rain, often below a window or at a corner.
Why it happens
Concrete shrinks as it cures. A shrinkage crack runs through the full 200 mm of the wall.
The repair
Low-pressure polyurethane injection from inside fills the crack front to back in a few hours.
Crack injection

Inside or outside

The two main systems, side by side

Both keep the basement dry. They work from opposite sides of the wall.

OutsideBasementDimpled membranecarries seepage downPipe in clear stonebeside the footingPipe runs to the pitSump pump and dischargeFootingFooting

Interior drainage system

A strip of floor is cut along the wall, perforated pipe goes in clear stone beside the footing, a membrane on the wall feeds seepage into it, and the pipe runs to a sump pump.

  • SuitsFloor-wall joint leaks; block walls; walls blocked outside by a deck, driveway or septic bed
  • SeasonAny month

Interior waterproofing in detail

OutsideBasementGrade sloped awayTrench to thefootingNew weeping tilein clear stoneMembrane anddrainage boardFloor stays closed

Exterior waterproofing

The wall is excavated to the footing, repaired, coated with a membrane and drainage board, and given a new weeping tile in clear stone before backfilling.

  • SuitsWalls damp over their whole height; stone and block; a failed weeping tile
  • SeasonSpring to late autumn

Exterior waterproofing in detail

The Caledon year

When basements here leak

Four moments a year account for most of the calls.

Late winter thaw

Meltwater sits on frozen ground and runs sideways to the foundation. Ice in downspouts sends roof water straight to the wall.

Spring rain

The water table peaks. Clay in south Caledon pushes water to the floor-wall joint; escarpment gravel sends it up through the slab.

Summer storms

A downpour overwhelms eavestroughs and window wells, and the sewers in Bolton and Caledon East back up into basements.

Autumn leaves and outages

Leaves block drains and the sump discharge. A wind storm cuts the power, and a pump with no backup stops.

How it works

Four steps from the first call to a dry basement

  1. You call or send the form

    Tell us what you see, when and where. Water coming in now? Say so; the line is answered day and night.

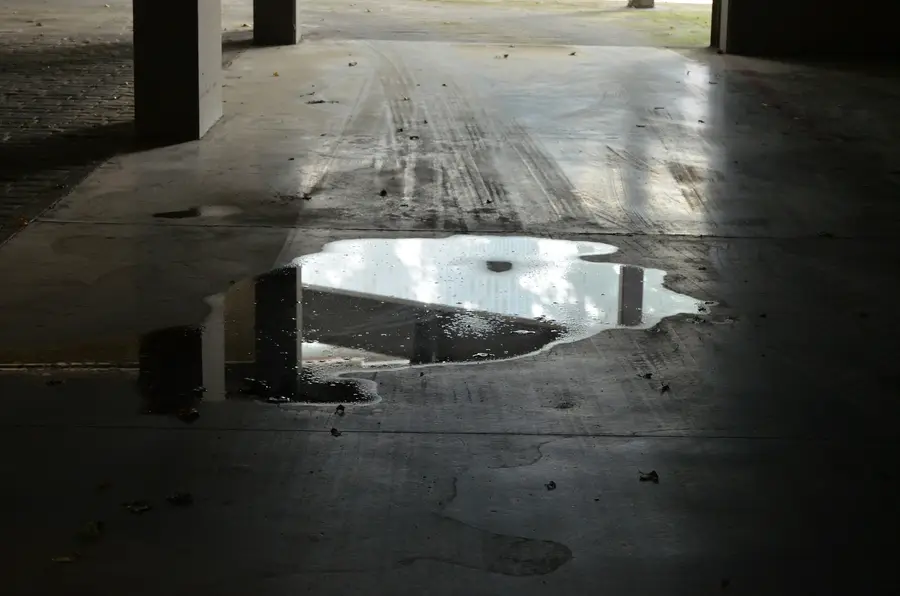

    Puddle of water spreading across a dark concrete floor
  2. Assessment at the house

    Walls, floor edge, cracks, sump pit and windows inside; grading, downspouts, window wells, well and septic outside.

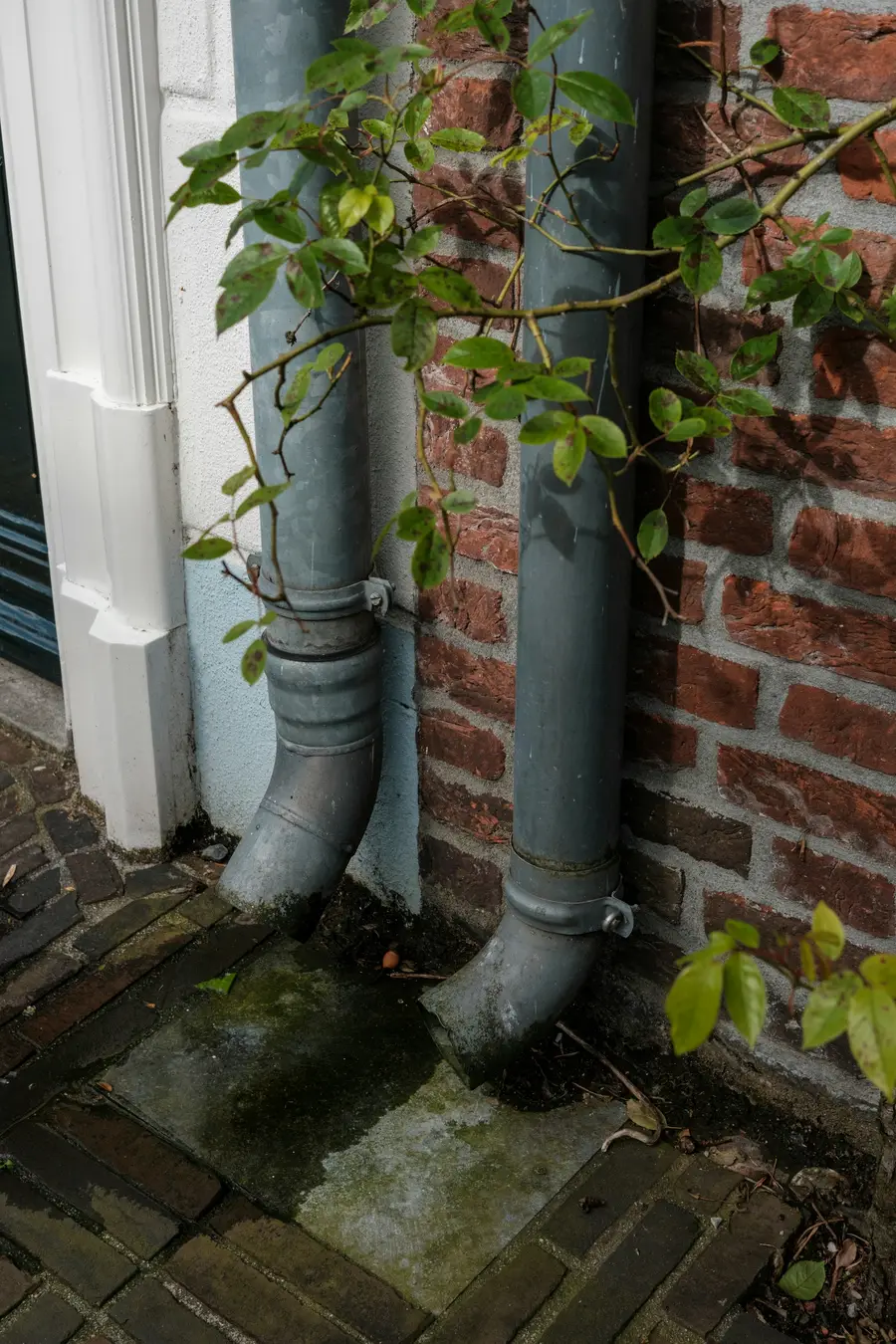

    Downspout running down the corner of a brick house wall
  3. Scope and price in writing

    Which walls, which method, what is removed and put back, how long, and the price. If the fix is a downspout extension, it says that.

    Hand ticking boxes on a handwritten checklist with a black pen
  4. The work, then a water test

    Floors and paths protected, the area sealed off, and every drain, pump and valve run with water before the crew leaves.

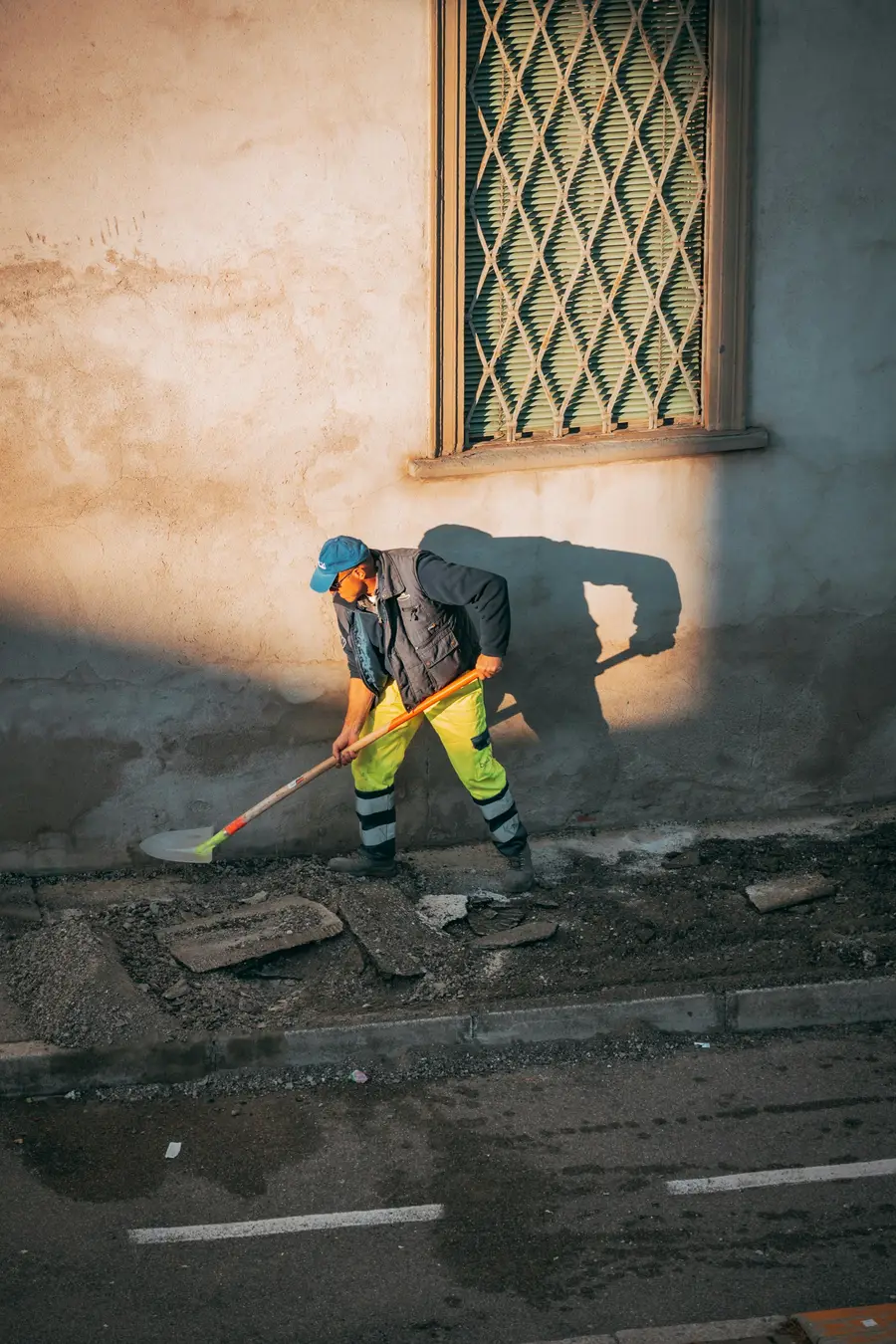

    Worker in high-visibility trousers shovelling gravel against a parged wall

See each step in detail

On the job

What the work looks like

Trenching, clear stone, concrete, pipe and the finished result.

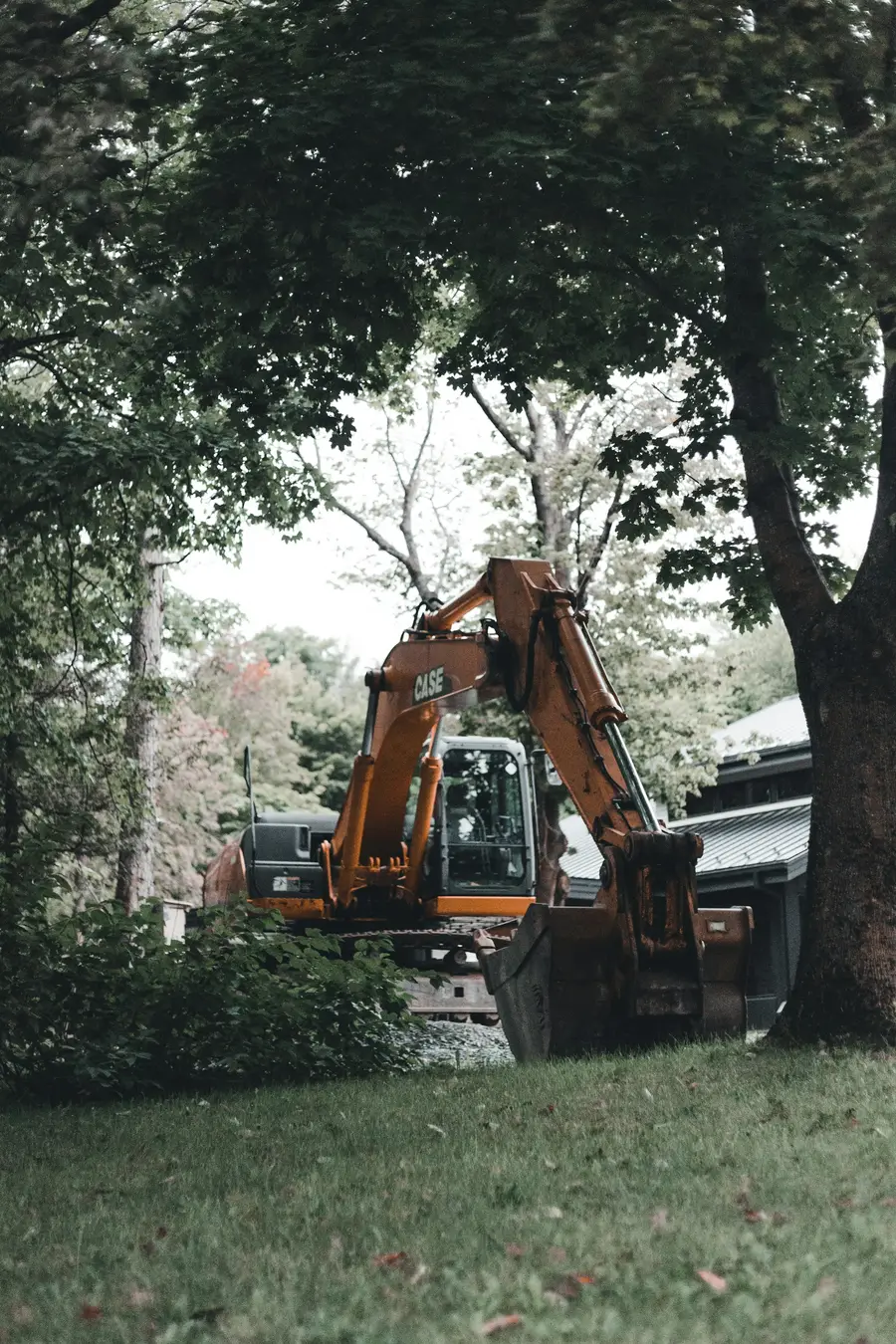

Yellow excavator parked on a lawn under large trees beside a house
A compact excavator fits most Caledon side yards.

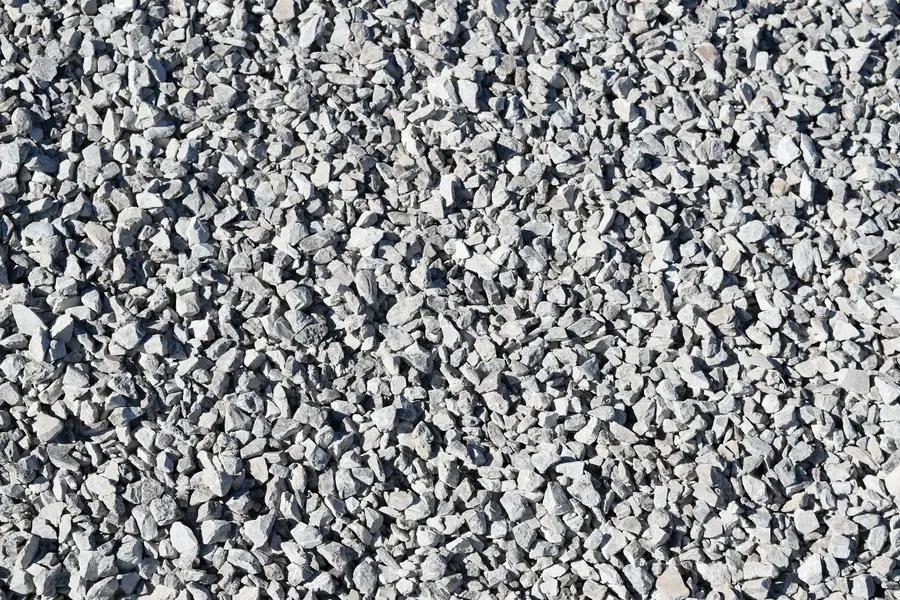

Close view of grey crushed clear stone
Clear stone: washed gravel with no fines.

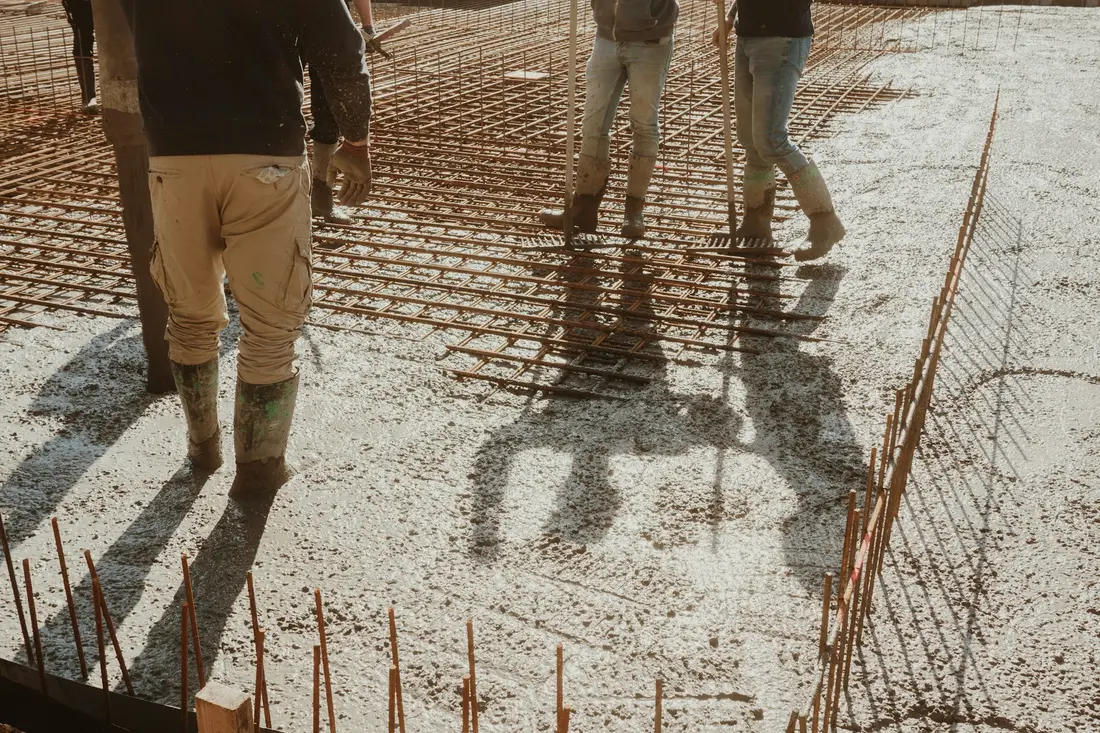

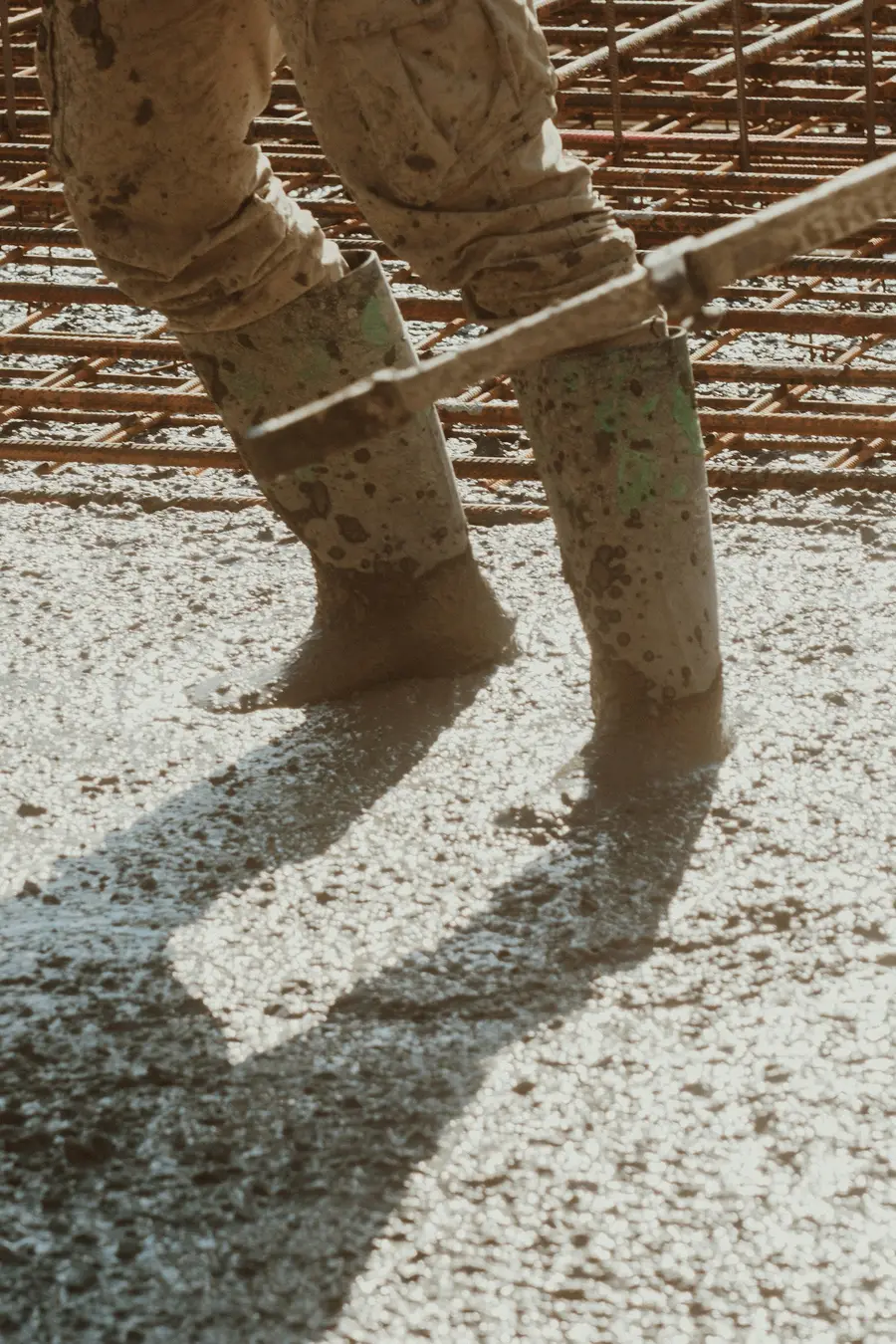

Worker’s boots in freshly placed concrete over a reinforcing mesh
The cut strip over an interior drain, re-poured level.

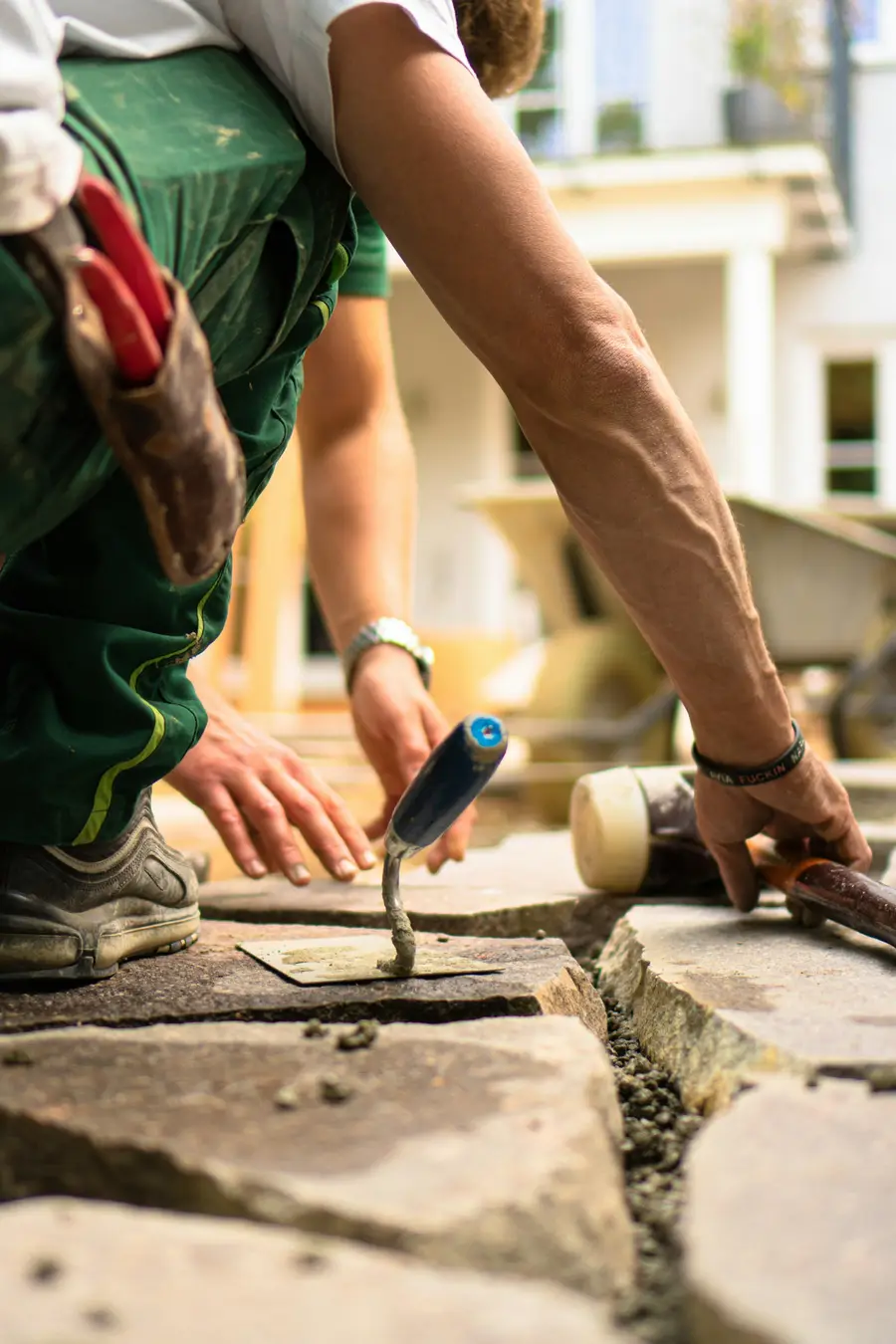

Worker pressing mortar into a joint between stone slabs with a pointing trowel
Joints repointed by hand with a trowel.

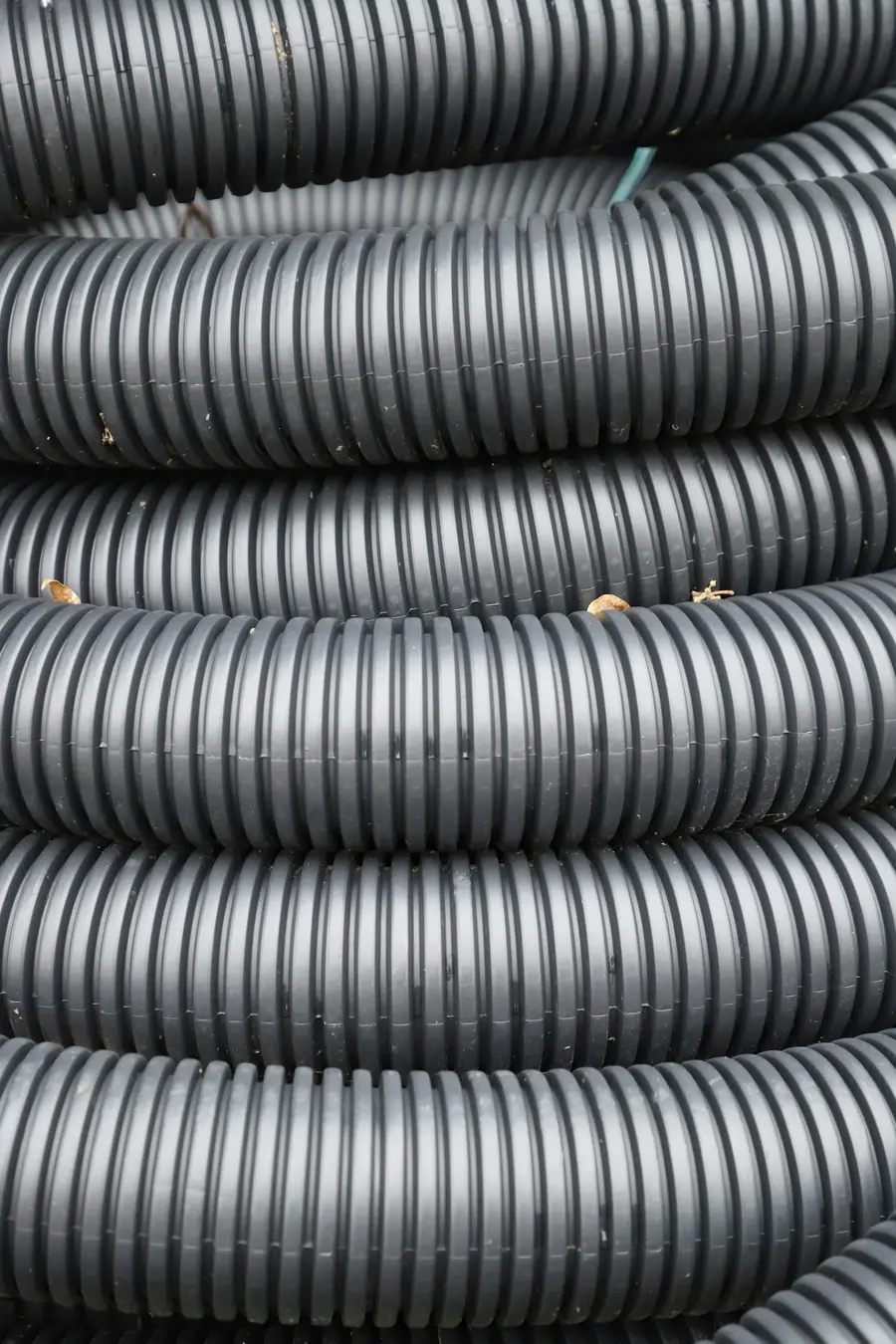

Coils of black corrugated drainage pipe stacked together
Corrugated drain pipe before it is laid in clear stone.

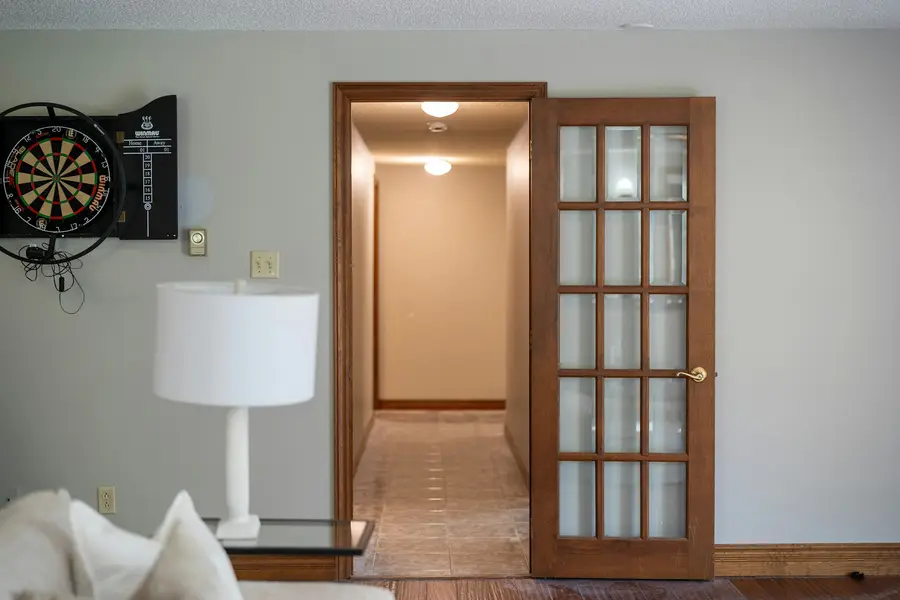

Finished basement hallway with a glazed door and warm lighting
A basement that can be finished and stay finished.

Where we work

All of the Town of Caledon

From the Caledon Village four corners we cover the whole Town: the Hurontario villages, Caledon East and the moraine hamlets, and the subdivisions of Bolton and Mayfield West. Caledon climbs from 221 m to 485 m, escarpment in the west and moraine in the east, so the ground under a house changes from one road to the next.

Hurontario corridor

  • Caledon Village
  • Alton
  • Cataract
  • Belfountain
  • Inglewood

Centre and east

  • Caledon East
  • Mono Mills
  • Palgrave
  • Albion
  • Mono Road

South Caledon

  • Bolton
  • Mayfield West
  • Tullamore
  • Wildfield
  • Macville

All service areas and what the ground is like

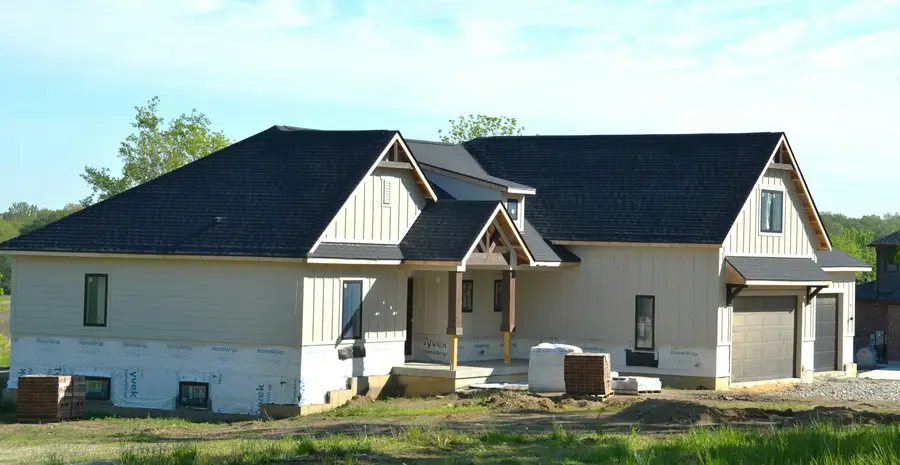

New farmhouse-style house with white board-and-batten siding and a dark roof on an open lot
BusinessBasement Waterproofing CaledonBasement waterproofing, Town of Caledon
Address18371 Hurontario St, Unit 2Caledon Village, ON L7K 0X7
Phone(289) 966-1767Answered 24 hours
HoursOpen 24 hours7 days a week

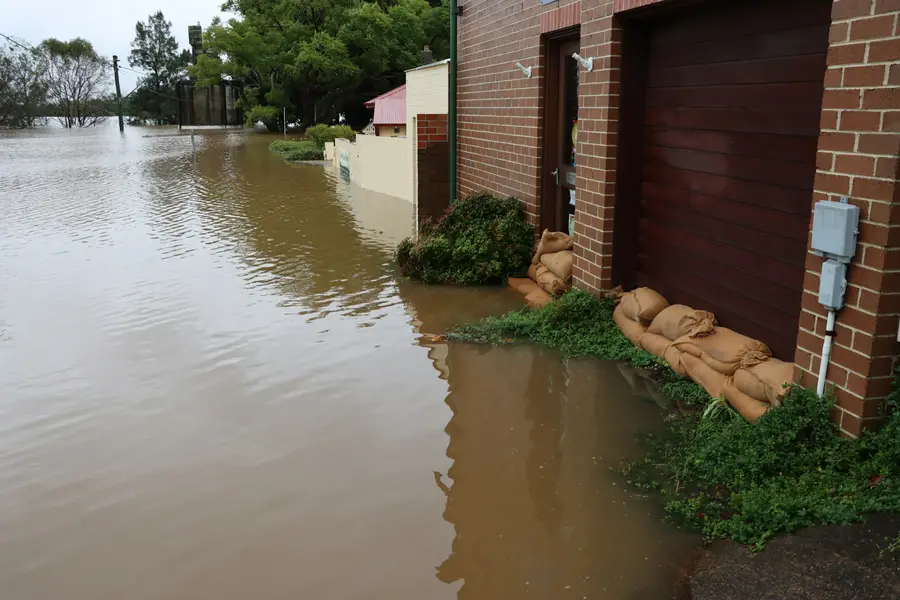

Sandbags stacked against a brick house wall in brown floodwater

Peel Region rebate

On Peel sewers? The Region pays back 60% of a backwater valve

For houses in Bolton, Caledon East, Mayfield West and other sewered areas, Peel reimburses 60% of a sanitary backwater valve up to $1,500. A Town of Caledon building permit and an inspection are part of it, and we handle both.

How the rebate works

Questions

Asked before almost every job

How much does basement waterproofing cost in Caledon?

It depends on the metres of wall treated, the depth to the footing, whether a machine can reach the wall, and what has to be moved: a deck, interlock, a finished wall, a septic bed or a well line. We look first, then quote in writing.

My house is on a well and septic. Does that change the work?

Yes. The well, the pump line, the tank and the leaching bed are located before any trench is planned, and the trench is routed around them. A sump discharge is never pointed at a septic bed or a well head.

Interior or exterior, which one do I need?

Exterior stops water before it reaches the wall: right for a wall damp over its whole height, for block or stone, and for a failed weeping tile. Interior collects water at the footing and pumps it out: right for the floor-wall joint and for walls that cannot be reached from outside.

Does the Region of Peel pay for any of this?

On Peel sewers, the Region reimburses 60% of a sanitary backwater valve, up to $1,500, with a Town of Caledon permit and inspection. Membranes, drains and crack repair are not covered. See the backwater valve page.

Can the work be done in winter?

Interior drainage, crack injection, sump pumps and backwater valves are indoor work and go ahead all year. Exterior excavation waits for the ground to thaw: frost reaches 1.2 m here.

All questions and answers

Free assessment

Find out where the water is coming from

Send the form and we call you back to book a visit.

  • The visit and the written quote are free.
  • You are told if the fix is as small as a downspout extension.
  • No work is booked until you have the price in writing.
